高防撞氧化铝陶瓷衬板

价格:

获取最新价格

现在联系



MOB:+86 19555395385 联系我们 >



E- MAIL 28786618@qq.com

产品详情描述

产品属性

品牌: 信和

Origin: 中国

地位: New

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Marketing Type: Ordinary Product

Place Of Origin: China

Application Industry: Ore Mining

Applicable Industry: Energy &Amp; Mining, Construction Works

Material: 92/95 alumina ceramics

Customization: Available

应用: Industrial Ceramic

包装和交付

供应能力和附加信息

运输: Ocean

产地: 中国

HS编码: 6909120000

港口: Shanghai Port,Qingdao Port,Ningbo Port

付款类型: L/C,T/T,D/P

国际贸易术语解释通则: CFR,FOB,CIF,EXW

产品描述

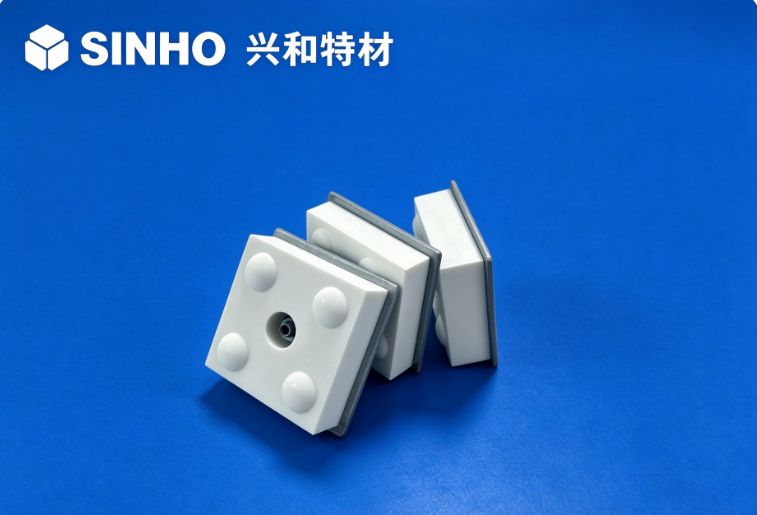

SINHO凸台缓冲耐磨陶瓷复合衬板是专门针对高落差冲裁、大颗粒冲击的恶劣工况而开发的。陶瓷本体一体烧结形成弧形缓冲凸台。当物料下落时，首先撞击凸台结构，分散了冲击动能，防止冲击力集中在陶瓷表面，大大降低了瓷体塌陷、破碎的概率。

产品采用增韧92/95氧化铝陶瓷与预制金属底板结合，衬板中心预留沉头安装孔，支持底板焊接和螺栓锁紧双重固定。无需依赖粘合剂，耐高温，耐连续振动，粘合层不老化、不剥落。

成品模块化预制，现场直接组装焊接，施工便捷。单件独立结构，局部损坏可单独更换，无需整体拆卸衬里。广泛应用于高落料斗、选矿口、原煤筒仓、骨料溜槽等强冲击点，有效延长设备基质的使用寿命，减少生产线停机和维护频率，降低企业长期运行维护成本。

Product name	Impact-resistant and wear-resistant ceramics
Material	92/95 alumina ceramics
Usage temperature	≤800℃
Common specifications	Thickness: 20mm, 25mm, 30mm, 50mm，70mm
Vickers Hardness	up to 1800 HV
Applied range	It is suitable for wear resistance of material conveying chutes, hoppers and other equipment in thermal power, steel, cement, coal, ports, mines and chemical industries.
Packing	Carton / Wooden Pallet

选型原则

Project	Paste type	Welding type	Dovetail type	shock resistance	Ceramic rubber liner
Code name	SHC-Z	SHC-H	SHC-Y	SHC-K	SHC-J
Service temperature (℃)	300	300-800	≤800	≤800	-50~150
Applicable medium	Powder / slurry	Powder / slurry	Powder / slurry	Particles/slurry	Particles/slurry
Material particles (mm)	≤3	≤10	≤200	≤200	≤200
Applied range	Pneumatic conveying of powder or slurry below 300℃	Pneumatic conveying of larger particle powder or slurry below 800℃	Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃	The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials.	The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact.
