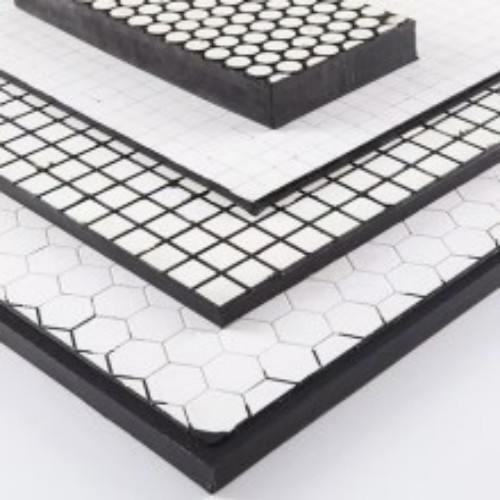

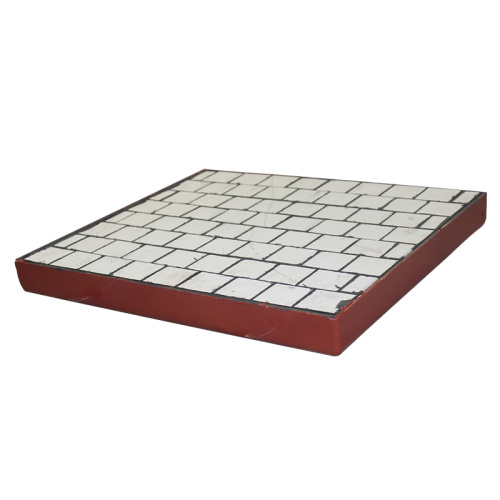

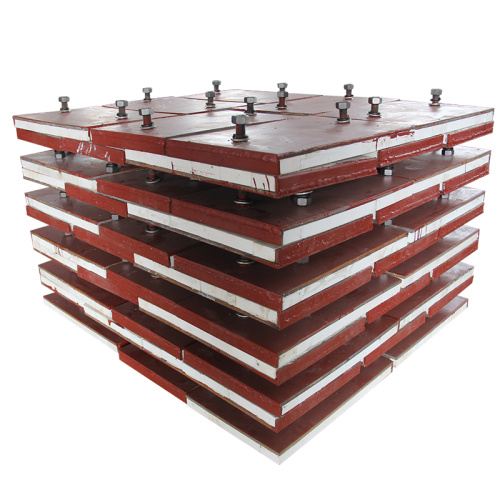

（陶瓷+橡胶+钢复合衬板）陶瓷橡胶衬板

价格:

获取最新价格

现在联系



MOB:+86 19555395385 联系我们 >



E- MAIL 28786618@qq.com

产品详情描述

产品属性

品牌: 信和

Origin: 中国

地位: New

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Marketing Type: Ordinary Product

Place Of Origin: China

Application Industry: Ore Mining

Applicable Industry: Energy &Amp; Mining, Construction Works

Customization: Available

表现: 耐磨、耐冲击

Material: 92/95 alumina ceramics

包装和交付

供应能力和附加信息

运输: Ocean

产地: 中国

HS编码: 6909120000

港口: Shanghai Port,Qingdao Port,Ningbo Port

付款类型: T/T,L/C,D/P

国际贸易术语解释通则: FOB,CFR,CIF,EXW

产品描述

严重磨损加上严重的物料冲击通常会缩短溜槽和料斗衬里的使用寿命，导致频繁停机和高昂的维护费用。我们的陶瓷橡胶复合耐磨板专为这种恶劣的工作条件而设计。

单个 92% 或 95% 氧化铝瓷砖通过高温硫化牢固地粘合到厚橡胶基材上。与简单的胶合衬垫不同，我们的集成结构即使在反复的重击下也能抵抗分层。坚硬的陶瓷表面可承受持续的颗粒磨损，而弹性橡胶层可消散冲击力、阻尼振动并降低工作场所噪音。

这种复合衬里可以通过螺栓或粘合剂轻松安装。它足够灵活，适合料箱、转运滑槽和输送机过渡区域的弯曲或不规则表面。我们提供定制尺寸和陶瓷布局以满足您的现场要求，并在批量订单之前提供用于性能测试的样品服务。

适用于矿山、火电、骨料加工和冶金厂。

Part Name	Ceramic Rubber Liners
Material	Two-in-one：Ceramic+rubber three-in-one：Ceramic+rubber+steel plate
Optional material	Ceramics: SHC wear-resistant ceramics /SHN nano-ceramics /SHA alloy ceramics. Viscose: common rubber/heat resistant rubber (150℃)/ cold resistant rubber (-50℃)/ flame retardant rubber.
usage temperature	-50℃—150℃
Common specifications	16/20/24/30/62mm
Origin	China
Certificate	ISO9001
HS	6909120000

选型原则

Project	Paste type	Welding type	Dovetail type	shock resistance	Ceramic rubber liner
Code name	SHC-Z	SHC-H	SHC-Y	SHC-K	SHC-J
Service temperature (℃)	300	300-800	≤800	≤800	-50~150
Applicable medium	Powder / slurry	Powder / slurry	Powder / slurry	Particles/slurry	Particles/slurry
Material particles (mm)	≤3	≤10	≤200	≤200	≤200
Applied range	Pneumatic conveying of powder or slurry below 300℃	Pneumatic conveying of larger particle powder or slurry below 800℃	Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃	The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials.	The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact.
