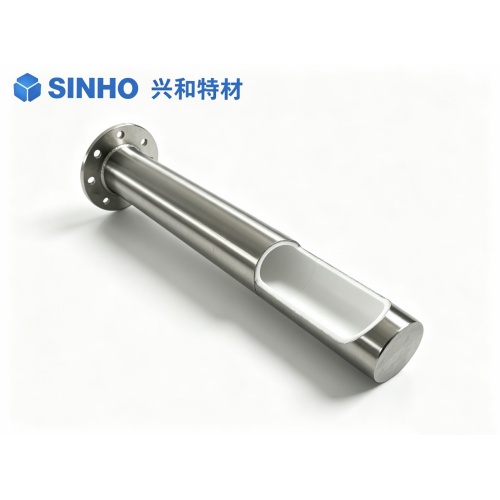

| Part name | Alumina Ceramic Lined Pipes |
| Material | Stainless steel ceramic tube |
| Operating Temperature | -50℃—1000℃ |
| Features One | Non-Flammable |
| Features Two | Excellent Adhesion |
| Features Three | Superior Wear Resistance |
| Features Four | Strong Corrosion Resistance |
| Features Five | High Temperature Tolerance |
| Specification | Customized |
| Outside diameter of steel pipe（mm） | Thickness of steel pipe（mm） | Ceramic inner diameter（mm） | Ceramic thickness（mm） | Flange specification |
| 70 | 3 | 50 | 5 | DN50 |
| 76 | 3 | 50 | 7 | DN65 |
| 76 | 2 | 58 | 5 | DN65 |
| 83 | 3 | 62 | 5 | DN65 |
| 89 | 3 | 65 | 6 | DN65/DN80 |
| 89 | 3 | 68 | 5 | DN80 |
| 89 | 3 | 70 | 5 | DN80 |
| 102 | 3 | 76 | 7 | DN80/DN100 |
| 102 | 3 | 80 | 6 | DN80/DN100 |
| 108 | 4 | 80 | 6 | DN80/DN100 |
| 114 | 3 | 90 | 6 | DN80/DN100 |
| 127 | 4 | 100 | 6 | DN100/DN150 |
| 152 | 3 | 125 | 8 | DN125/DN150 |
| 159 | 4 | 125 | 8 | DN125/DN150 |
| Q1: What information is required to select a mining slurry pipe? | Please provide the pipe diameter, length, operating pressure, slurry density, solids concentration, particle size, temperature, pH value and flange standard. |
| Q2: What lining materials are available? | According to the operating conditions, natural rubber, PPR, ceramics and other wear-resistant lining materials can be selected. |
| Q3: Can the lining thickness be customized? | Yes The lining thickness can be customized according to the pipe diameter, wearability, particle size and required service life. |
| Q4: Can you provide elbows, reducers and tees? | Yes Straight pipes, elbows, reducers, tees, flexible hoses and customized fittings can be provided as a complete piping system. |
