| 销售单位: | Square Meter |
|---|---|
| 图片示例: |
|
| 下载: |
|
运输: Ocean
产地: 中国
HS编码: 6909120000
港口: Shanghai Port,Qingdao Port,Ningbo Port
付款类型: L/C,T/T,D/P
国际贸易术语解释通则: CFR,FOB,CIF,EXW

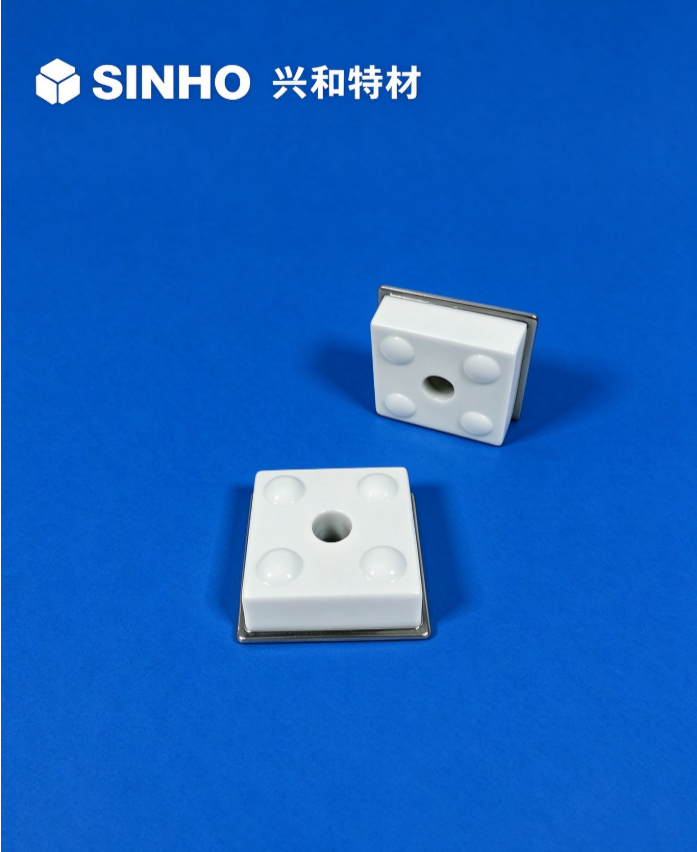

| Product name | Impact-resistant and wear-resistant ceramics |
| Material | 92/95 alumina ceramics |
| Usage temperature | ≤800℃ |
| Common specifications | Thickness: 20mm, 25mm, 30mm, 50mm，70mm |
| Vickers Hardness | up to 1800 HV |
| Applied range | It is suitable for wear resistance of material conveying chutes, hoppers and other equipment in thermal power, steel, cement, coal, ports, mines and chemical industries. |
| Packing | Carton / Wooden Pallet |
| Do not change (status quo) | Change impact-resistant and wear-resistant ceramics |
| The steel plate was worn out in 3 months and frequently stopped. | Life is calculated by years, with less downtime. |
| Ordinary ceramics break and fall off when they are smashed. | Toughening formula, impact-resistant porcelain |

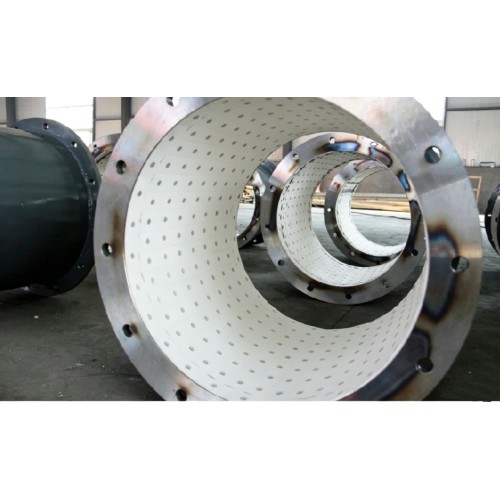

| Each replacement is labor-intensive and time-consuming. | The composite structure is anti-dropping, and the pipes are installed once for many years. |
| The total cost is higher and higher. | One-time investment, long-term return. |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
