陶瓷橡胶复合耐磨衬板

付款类型: L/C,T/T,D/P
国际贸易术语解释通则: FOB,CFR,CIF,EXW
运输: Ocean
港口: Shanghai Port,Qingdao Port,Ningbo Port

价格:

获取最新价格

现在联系



MOB:+86 19555395385 联系我们 >



E- MAIL 28786618@qq.com

产品详情描述

产品属性

品牌: 信和

Origin: 中国

地位: New

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Marketing Type: Ordinary Product

Place Of Origin: China

Application Industry: Ore Mining

Applicable Industry: Construction Works, Energy &Amp; Mining

Customization: Available

表现: 耐磨、耐冲击

Material: 92/95 alumina ceramics

包装和交付

销售单位:	Square Meter
图片示例:
下载:

供应能力和附加信息

运输: Ocean

产地: 中国

HS编码: 6909120000

港口: Shanghai Port,Qingdao Port,Ningbo Port

付款类型: L/C,T/T,D/P

国际贸易术语解释通则: FOB,CFR,CIF,EXW

产品描述

产品介绍

这种陶瓷橡胶复合内衬采用橡胶硫化技术，将高铝砖和橡胶结合成一个整体。

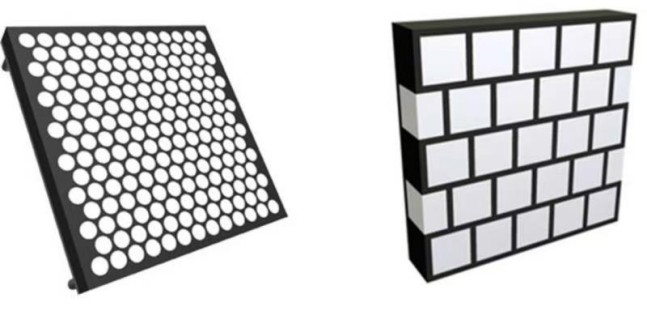

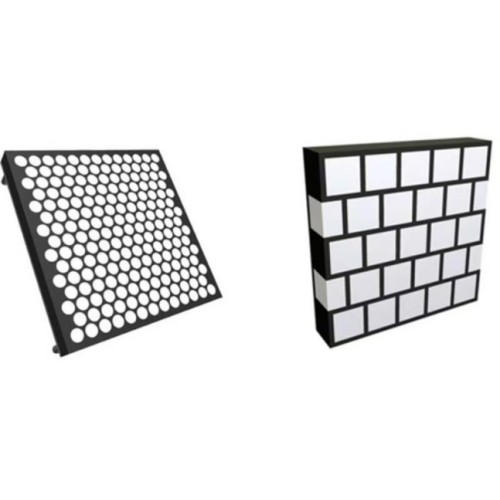

产品有二合一和三合一结构：

二合一是：陶瓷+橡胶。

三位一体是：陶瓷+橡胶+钢板。

使用温度-50℃-150℃

陶瓷层提供优异的耐磨性，而橡胶层则吸收重冲击力并降低噪音。

适用于采矿溜槽、料斗、筒仓和输送机转运点。有 92% 和 95% 氧化铝等级可供选择，支持定制尺寸。

价值卖点

1、兼具耐磨性和抗冲击性。

2、降低噪音、缓冲重物冲击

3. 溜槽、料斗和输送机的衬里

4. 可定制尺寸和陶瓷布局

Part Name	Ceramic Rubber Liners
Material	Two-in-one：Ceramic+rubber three-in-one：Ceramic+rubber+steel plate
Optional material	Ceramics: SHC wear-resistant ceramics /SHN nano-ceramics /SHA alloy ceramics. Viscose: common rubber/heat resistant rubber (150℃)/ cold resistant rubber (-50℃)/ flame retardant rubber.
usage temperature	-50℃—150℃
Common specifications	16/20/24/30/62mm
Origin	China
Certificate	ISO9001
HS	6909120000

证书

选型原则

Project	Paste type	Welding type	Dovetail type	shock resistance	Ceramic rubber liner
Code name	SHC-Z	SHC-H	SHC-Y	SHC-K	SHC-J
Service temperature (℃)	300	300-800	≤800	≤800	-50~150
Applicable medium	Powder / slurry	Powder / slurry	Powder / slurry	Particles/slurry	Particles/slurry
Material particles (mm)	≤3	≤10	≤200	≤200	≤200
Applied range	Pneumatic conveying of powder or slurry below 300℃	Pneumatic conveying of larger particle powder or slurry below 800℃	Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃	The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials.	The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact.
