| 销售单位: | Square Meter |
|---|---|
| 程序包类型: | 纸箱/木托盘 |
| 图片示例: |
|
| 下载: |
|
包装: 纸箱/木托盘
运输: Ocean
产地: 中国
HS编码: 6909120000
港口: Shanghai Port,Qingdao Port,Ningbo Port
付款类型: T/T,L/C,D/P
国际贸易术语解释通则: CFR,CIF,EXW,FOB

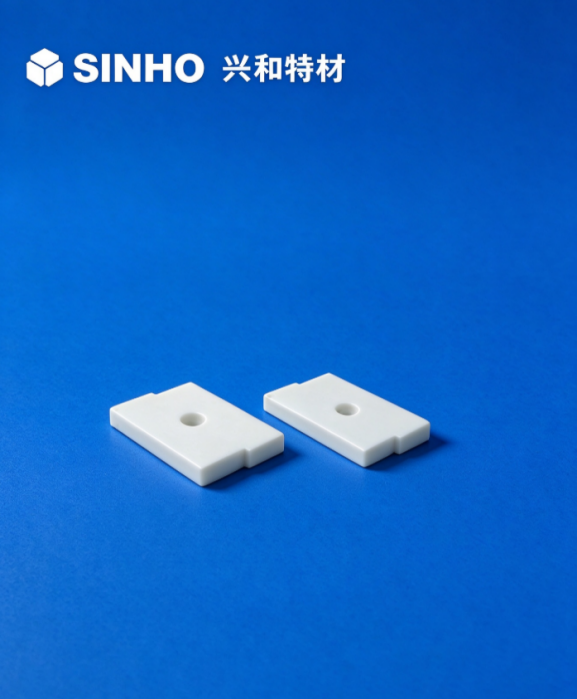

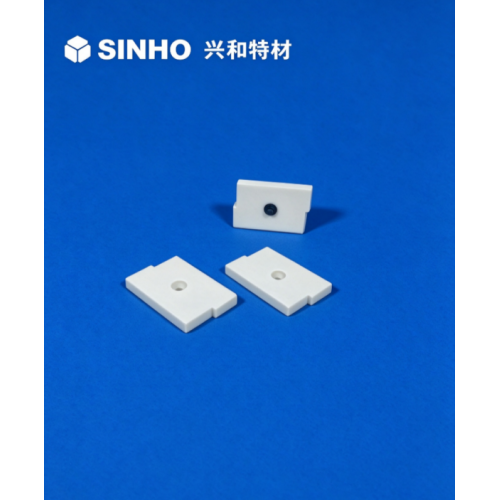

| Product name | Weldable wear-resistant ceramics |
| Material | 92/95 alumina ceramics |
| Usage temperature | 300℃-800℃ |
| Common specifications | Thickness: 5mm, 7mm, 10mm, 15mm |
| Vickers Hardness | up to 1800 HV |
| Applied range | Suitable for wear resistance of high temperature powder conveying or pulverizing system equipment. |
| Mucilage Glue | SHV-800 |
| Application | Cement, Thermal Power, Steel, Mining, Port, Chemical Industry |
| Packing | Carton / Wooden Palletv |
| 92 alumina liner-orifice plate（A fraction of the size） | 100*100*10 | 100*100*16 | 100*100*25 | 100*50*10 | 100*100*6 | 100*50*10 |
| 95 alumina liner-orifice plate（A fraction of the size） | 100*100*25 | 100*50*10 | 120*80*12 | 150*100*14 | 150*100*25 | 100*50*25 |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
| Q: Are you trading company or manufacturer ? | A: We are factory. |
| Q: How long is your delivery time ? | A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity. |
| Q: Accept customized? | A: Yes.Kindly send all your details to our worker please. |
