| 销售单位: | Square Meter |
|---|---|
| 图片示例: |
|
| 下载: |
|
运输: Ocean
产地: 中国
HS编码: 6909120000
港口: Shanghai Port,Qingdao Port,Ningbo Port
付款类型: L/C,T/T,D/P
国际贸易术语解释通则: FOB,CFR,CIF,EXW
| Product name | Weldable wear-resistant ceramics |
| Material | 92/95 alumina ceramics |
| Usage temperature | 300℃-800℃ |
| Common specifications | Thickness: 5mm, 7mm, 10mm, 15mm |
| Vickers Hardness | up to 1800 HV |
| Applied range | Suitable for wear resistance of high temperature powder conveying or pulverizing system equipment. |
| Mucilage Glue | SHV-800 |
| Application | Cement, Thermal Power, Steel, Mining, Port, Chemical Industry |
| Packing | Carton / Wooden Palletv |

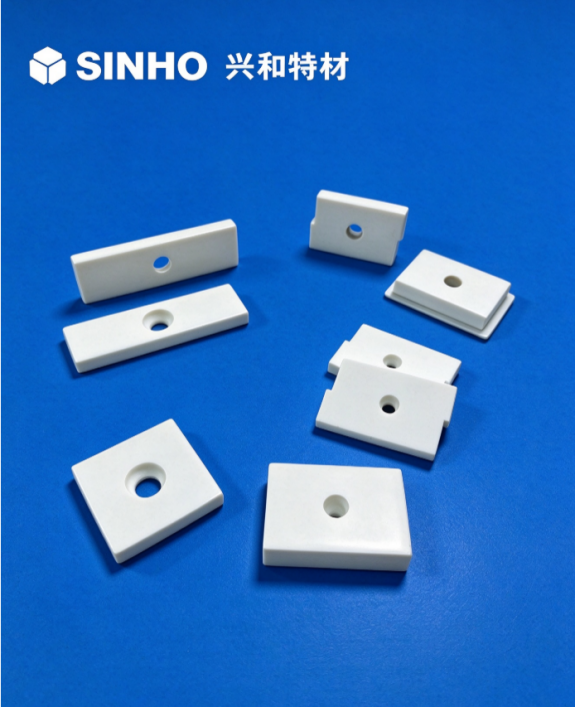

| 92 alumina liner-orifice plate（A fraction of the size） | 100*100*10 | 100*100*16 | 100*100*25 | 100*50*10 | 100*100*6 | 100*50*10 |
| 95 alumina liner-orifice plate（A fraction of the size） | 100*100*25 | 100*50*10 | 120*80*12 | 150*100*14 | 150*100*25 | 100*50*25 |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
| Q: Are you a manufacturer? | A: Yes, we are a professional factory on industrial wear-resistant. |
| Q: Do you provide OEM or ODM services? | A: Yes, we supply OEM & ODM service. |
| Q: Do you provide customized processing? | A: Yes, we offer one-stop solution for wear-resistant. |
| Q: Generally, what's your delivery time? | A: Generally, it ranges from 15 to 45 days, depending on the quantity and quality requirements of the customized products. |
